ARTICULATING BOOMS IN NEW CASTLE, PA

Genie® DC and Bi-Energy machines offer quiet, emission-free operation in the most sensitive work environments. For industrial applications where the machine must be driven significant distances, the Genie bi-energy system combines the benefits of a 48V DC machine with the versatility of a diesel-powered generator.
  • Up, out and over positioning capabilities for ultimate versatility
  • Tight turning radius and zero tailswing (most models) for easy maneuvering through narrow aisles and standard doors
  • Proportional lift and drive controls allow precise boom positioning and smooth drive performance
  • 48V DC electric drive system available for quiet, emission-free operation in sensitive areas
  • Self-leveling platform rotates 90° to either side on non-jib models
  • Jib boom models available for extra working range
JLG E400AJPN
(Click Here for spec sheet)

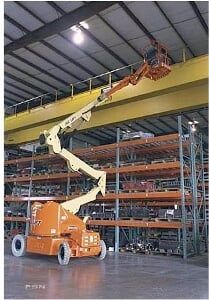

JLG E400AJPN — Articulating Booms In New Castle, PA
Features
  • Versatility – Three platform heights and jib and non-jib options; three chassis widths to fit any workspace; electric or multi-fuel
  • Accessibility – up and over access, optional jib
  • Maneuverability – move over uneven surfaces with the Automatic Traction Control option
  • Productivity – work longer with longer duty cycles
  • Environmentally friendly – zero emissions
Quick Specs
  • Platform Height Elevated – 40 ft
  • Overall Width – 4 ft 11 in
  • Platform Capacity – 500 lb
Z-45/25
(Click Here for spec sheet)

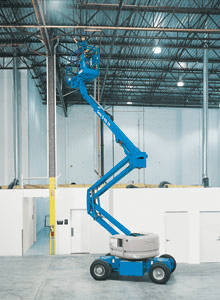

Z-45/25 — Articulating Booms In New Castle, PA
With an extended reach, models with jibs, and a variety of outstanding performance features, the Z-45/25 DC/Bi-Energy handles the most challenging high-reach jobs. The revolutionary Genie Bi-Energy system combines the quiet, emission-free and efficient operation of a 48V DC machine with the versatility of a diesel generator powered machine to provide a boom that is ideal for indoor and outdoor applications.
Quick and Maneuverable
  • The Z-45/25's enhanced design helps get you where you need to go, quickly and easily. The new 5 ft (1.52 m) inside turning radius delivers excellent maneuverability. Z-45/25J models with a 5 ft (1.52 m) articulating jib boom are also available to provide a 135° range of motion.
Unsurpassed Speed and Gradeability
  • This 4x2 is the fastest boom in its class. Travels 3 mph (4.8 km/h) with 30% gradeability.
Dual Parallelogram Riser
  • Advanced design allows ascent and descent along a vertical plane with or without retraction or extension of the boom.
Large Platform with Hydraulic Rotation
  • The standard 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg). Dimensions of 30 x 72 in (76 cm x 1.83 m) allow ample space for two workers and their tools. Platform features a 180° hydraulic rotation for Z-45/25 models and a 160° hydraulic rotation for Z-45/25J models. Also includes automatic platform leveling with a manual hydraulic override system and an AC power outlet.
Ground Controls
  • Located at eye level with easy to understand controls and including auxiliary power, key switch, emergency stop, hour meter and all boom functions.
Safety in Sight
  • All instructional and safety decals are straightforward and conveniently located to be clearly visible.
Drive Enable System
  • Informs operator when the drive and steer functions will move opposite controller movements.
Standard Features
  • Over 51 ft (15.8 m) working height
  • Over 24 ft (7.3 m) horizontal reach
  • Up and over clearance of over 22 ft (6.7 m)
  • 5 ft (1.5 m) turning radius
  • 500 lb (227 kg) lift capacity
  • Fully proportional controls
  • 180° hydraulic platform rotation on Z-45/25 models
  • 160° hydraulic platform rotation on Z-45/25J models
  • 24V DC auxiliary power unit
  • Drive enable system
  • End mount platform on Z-45/25J models
  • AC wiring to platform
  • Tilt alarm
  • Horn
  • Hour meter
Options and Accessories
  • Alarm package
  • Platform swing gate
  • Air line to platform
  • Full rail platform pinch guard
  • Platform work light
  • Platform control box cover
  • Industrial foam or industrial non-marking tires
Standards Compliance
  • ANSI/SIA A92.5
  • CSA CAN3-B354.4-M82
  • CE compliance option
  • AS 1418.10
