Telescopic Booms

TELESCOPIC BOOMS IN NEW CASTLE, PA

Telescopic booms offer greater horizontal outreach than any other type of aerial platform — perfect for areas with limited access in construction and industrial applications. Genie® telescopic S™-booms are also designed for productivity with the traction and drive speed you need to get around the job site and to the work area.
  • Ideal for areas with limited access in construction and industrial applications
  • Minimal tailswing for maneuvering in tight spaces
  • Dual-fuel (gas or LPG) options available for indoor/outdoor applications
  • Designed for productivity with the traction and drive speed you need
  • Super Boom models with horizontal outreach among the industry’s best
JLG 400S 46' D/F
JLG 400S 46' D/F — Telescopic Booms in New Castle, PA
Features
  • Best-in-class gradeability and reach
  • Fastest lift and drive speeds for unmatched productivity
  • Low cost of ownership
Quick Specs
  • Platform Height Elevated – 40 ft 4 in
  • Overall Width – 7 ft 6.5 in
  • Platform Capacity – 500 lb
JLG 600S
JLG 600S — Telescopic Booms in New Castle, PA
600S Telescopic Boom Lift Specifications
Reach Specifications
Platform Height: 60' 3" / 18.36 cm
Horizontal Outreach: 49' 6" / 15.09 m
Swing: 360º Continuous
Platform Capacity-Restricted: 1,000 lb / 454 kg
Platform Capacity-Unrestricted: 500 lb / 227 kg
Platform Rotator: 160º Hydraulic
Jib (Range of Articulation): n/a
Dimensions
Platform Size: 36 x 96" / 0.91 x 2.44 m
Overall Width: 7' 11" / 2.41 m
Tailswing: 3' 9" / 1.14 m
Stowed Height: 8' 5" / 2.57 m
Stowed Length: 27' 11" / 8.51 m
Wheelbase: 8' 1" / 2.46 m
Ground Clearance: 12" / 30 cm
Weight*: 22,750 lb / 10,319 kg
Max. Ground Bearing Pressure**: 67 psi / 4.7 kg/cm²
Chassis
Drive Speed 2WD/4WD: 4.25 mph / 6.8 kmph
Gradeability 2WD: 30%
Gradeability 4WD: 45%
Axle Oscillation: 8" / 20 cm
Tire Size: 15 x 19.5
Tire Type: Lug Tread
Turning Radius (Inside)
  • Turning Radius (Inside) - 2WS: 11' 4" / 3.45 m
  • Turning Radius (Inside) - 4WS: 5' 5" / 1.65 m
Turning Radius (Outside)
  • Turning Radius (Outside) - 2WS: 17' 9" / 5.41 m
  • Turning Radius (Outside) - 4WS: 11' 4" / 3.45 m
Power Source
Dual Fuel Engine:
  • GM Vortec 3000 MPFI, 82 hp / 61 kW
Diesel Engine:
  • Deutz D2011L04 w/ EGR 49 hp/36.5 kW - Caterpillar 3044C, 63.3 hp / 48 kW
Fuel Tank Capacity:
  • 40 gal. / 151.42 L
Hydraulic Reservoir:
  • 32 gal. / 121.13 L
Auxiliary Power:
  • 12V DC
Noise Level:
  • 70 dBa @ 7 meters
Genie S-80 & S-85
(Click Here for spec sheet)
Genie S-80 & S-85 — Articulating Booms In New Castle, PA
S-80
  • 86 ft (26.38 m) working height
  • 72 ft 5 in (22.07 m) horizontal reach
  • 600 lb (272 kg) lift capacity with
  • 6 ft (1.83 m) platform
  • 500 lb (227 kg) lift capacity with
  • 8 ft (2.44 m) platform
S-85
  • 91 ft (27.90 m) working height
  • 77 ft 5 in (23.60 m) horizontal reach
  • 500 lb (227 kg) lift capacity with
  • 6 ft (1.83 m) platform
  • 500 lb (227 kg) lift capacity with
  • 8 ft (2.44 m) platform
JLG 800S
(Click Here for spec sheet)
Performance
Platform Height- Elevated
  • 800S- 80 ft, 24.38 m
  • 860SJ- 86 ft, 26.21 m
Horizontal Outreach
  • 800S- 71 ft, 21.64 m
  • 860SJ- 75 ft, 22.86 m
Capacity on Platform Extension- 250 lb, 113 kg
Swing- 360 degrees Continuous

Platform Capacity
Restricted (800S)- 1,000 lb, 454 kg
Restricted (860SJ)- 750 lb, 340 kg
Platform Capacity-
Unrestricted- 500 lb, 227 kg

Platform Rotator- 180 degrees Hydraulic

Jib Range of Articulation
860SJ- 130 degrees, +70, -60

Weight
800S- 33,200 lb, 15,060 kg
860SJ- 36,400 lb, 16,511 kg

Max Ground Bearing Pressure
800S- 72 psi, 5.06 kg/cm2
860SJ- 81 psi, 5.69 kg/cm2

Drive Speed 2WO 3.5 mph, 5.6 kmph
Drive Speed 4WD 3.5 mph, 5.6 kmph
Gradeability 2WD 30%
Gradeability 2WD 45%
Turning Radius:
Inside 12 ft, 3.66m
Outside 22 ft 6 in., 6.86m
Genie S-60

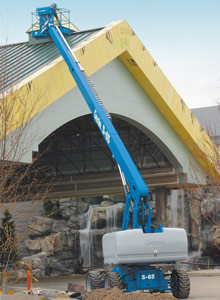

Genie S-60 — Telescopic Booms in New Castle, PA
The Genie S-60 and S-65 Stick Booms are the value leaders in the industry.
Genie’s redesigned stick boom family includes faster lift speed, a more powerful engine, a stiffer mast and updated styling. Choose the Genie S-60 boom, with 66 feet (20.3 m) of working height, or the S-65, with an additional 5 ft (1.52 m) articulating jib boom. Customize your boom from many option packages.
Genie Standard Features
  • S-60 has 66 ft (20.3 m) working height
  • S-65 has 71 ft (21.8 m) working height
  • S-60 has 51 ft 3 in (15.6 m) horizontal reach
  • S-65 has 56 ft 4 in (17.2 m) horizontal reach
  • Up to 600 lb (272 kg) lift capacity on the S-60
  • 500 lb (227 kg) lift capacity on the S-65
  • Oscillating axle system on 4x4 models
  • Dual extended cylinders
  • Dual fuel (Gas/LPG) or diesel engine options
  • Fully proportional platform controls with ramp up/down feature
  • Hydraulic platform rotation
  • 360° continuous turntable rotation
  • 12V DC auxiliary power
  • Fuel select switch on platform and ground control panels (Gas/LPG models)
  • Closed-loop hydrostatic drive
  • Positive traction drive
  • Drive enable system
  • Self-leveling platform
  • Rough terrain air tires
  • Locking turntable covers
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • AC wiring to platform
  • Wire braided hose
  • Tilt alarm
  • Horn
  • Hour meter
Genie Options and Accessories
  • Welder Package Option
  • Alarm package
  • Cold start packages
  • 2500 or 3000 watt AC generator
  • 8 ft (2.44 m) steel platform
  • 750 lb (340 kg) lift capacity option on the S-60
  • Platform swing gate
  • Air line to platform
  • Platform rail pinch guard
  • Platform work lights
  • Lockable platform control box cover
  • Foam-filled, non-marking and floatation tire packages
  • Tool tray
  • Fluorescent tube caddy
  • Hostile environment packages
  • Hydraulic oil cooler
  • LPG tank
  • GS/LPS rating for Ford engine powered machines
  • Driving lights
  • Pipe cradle
Standards Compliance
  • ANSI/SIA A92.6
  • CSA CAN3-B354.2-M82
  • CE compliance option
  • AS 1418.10
Genie S-40 & S-45

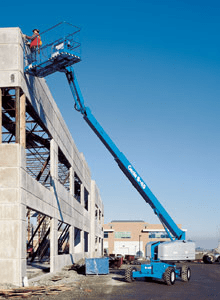

Genie S-40 & S-45 — Telescopic Booms in New Castle, PA
The Genie S-60 and S-65 Stick Booms are the value leaders in the industry.
Genie's S-40 and S-45 stick booms feature faster lift speeds, more powerful engine options, and low-profile chassis covers offering the industry more of what it needs to get the job done. Choose the Genie S-40 boom, with 46 ft (14 m) of working height, or the S-45, with an additional 5 ft (1.52 m) articulating jib boom. Customize your Genie boom with many option packages.
Genie Standard Features
  • S-40 has 46 ft (14 m) working height
  • S-45 has 51 ft (15.5 m) working height
  • S-40 has 31 ft 8 in (9.7 m) horizontal reach
  • S-45 has 36 ft 8 in (11.2 m) horizontal reach
  • 500 lb (227 kg) lift capacity
  • Oscillating axle system on 4x4 models
  • Dual fuel (Gas/LPG) or diesel engine options
  • Fully proportional platform controls with ramp up/down feature
  • Hydraulic platform rotation
  • 360° continuous turntable rotation
  • 12V DC auxiliary power
  • Fuel select switch on platform and ground control panels (Gas/LPG models)
  • Closed-loop hydrostatic drive
  • Hydraulic oil cooler
  • Positive traction drive
  • Drive enable system
  • Self-leveling platform
  • Locking turntable covers
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • AC wiring to platform
  • Wire braided hose
  • Tilt alarm
  • Horn
  • Hour meter
Genie Options and Accessories
  • Welder Package Option
  • Alarm package
  • Cold start packages
  • 2500 or 3000 watt AC generator
  • 8 ft (2.44 m) steel platform
  • Platform swing gate
  • Air line to platform
  • Platform rail pinch guard
  • Platform work lights
  • Lockable platform control box cover
  • Tool tray
  • Fluorescent tube caddy
  • Hostile environment packages
  • Additional LPG tank
  • GS/LPS rating for Ford engine powered machines
  • Foam-filled tires
  • Tow package
  • Driving lights
  • Weld lead to platform
  • Spark arrester (Ford and Deutz)
  • Scrubber/spark arrester (Deutz)
Standards Compliance
  • ANSI/SIA A92.6
  • CSA CAN3-B354.2-M82
  • CE compliance option
  • AS 1418.10
JLG 460SJ
JLG 460SJ — Telescopic Booms in New Castle, PA
Increased Productivity
  • The fastest lift and drive speeds in their class
  • Reaches up to 3.5 ft (1.07 m) further than competitive models
  • Improved rough terrain capabilities with 45% gradeability
Enhanced Control
  • Exclusive Control ADE® (Advanced Design Electronics)system for better performance with improved serviceability
  • Control ADE system allows function speeds and optionsto be customized to meet customer preferences
  • Provides better fuel efficiency and reduced emissions
Improved Maintainability
  • Enhanced electrical system minimizes the number of wires and connections
  • The Control ADE system reduces troubleshooting time and identifies potential problems
  • Swing-out engine tray provides ease of accessFea
Features
  • Articulating Jib
  • (460SJ only) 6 ft (1.83 m)
  • Platform
  • Side Entry 36 x 96 in. (0.91 x 2.44 m)
  • Inward Self-Closing Swinging Gate
  • 180 Degree Hydraulic Platform Rotator
  • Platform Console Machine Status Light Panel*
  • 110V-AC Receptacle in the Platform
  • 5 Degree Tilt Alarm/Indicator Light
  • 12 x 16.5 Rim Protector Lug Tread Tires
  • Swing Out Engine Tray
  • 12V-DC Auxiliary Power
  • Hourmeter
  • Proportional Controls
  • Control ADER System
  • Lifting/Tie Down Lugs
  • Horn
  • Oscillating Axle
  • Operator Tool Tray
  • Motion Alarm
  • Glow Plugs (Deisel Engines)
Accessories and Options
  • 750 lb (340 kg) Unrestricted Capacity
  • with 1,000 lb (450 kg) Restricted
  • Capacity (400S Only)
  • 36 x 72 in. (0.91 x 1.83 m) Platform
  • 1⁄2 in. Air Line to Platform
  • Soft Touch System
  • 14 x 7.5 Lug Tread Tires
  • Foam-Filled Tires
  • High Flotation Sand/Turf Tires (4WD Only)
  • 2500W Generator
  • Tow Package (2WD Only)
  • Flashing Amber Beacon
  • 43.5 lb (19.73 kg) Propane Tank
  • Cold Weather Kit
  • Hostile Environment Kit
  • Arctic Package
  • Semi-Trak
  • Light Package
  • Platform Worklights
  • Special Hydraulic Oils (Consult Factory)
  • Catalytic Muffler
