Telehandlers

TELEHANDLERS IN NEW CASTLE, PA

Feature all-wheel steering, including two-wheel, four-wheel circle, and four-wheel crab to meet various maneuverability requirements. JLG® telehandlers have a precision placement system.
No matter what your task or application, count on JLG brand of telehandlers to reach greater heights of performance.
Cat TH580B
Cat TH580B — Telehandlers in New Castle, PA
Weights
Engine Model
  • Cat 3054E
Gross Power
  • 120 hp
Net Power
  • 117.5 hp
Maximum Torque
  • 333 lb ft
Bore
  • 4 in
Stroke
  • 5 in
Displacement
  • 268 in3
Engine
Operating Weight
  • 30100 lb
Operating Specifications
Rated Load Capacity
  • 11000 lb
Maximum Lift Height
  • 56 ft
Load at Max Height - Stabilizers Down
  • 5500 lb
Load at Max Height - Stabilizers Up
  • 4400 lb
Maximum Forward Reach
  • 42 ft
Load at Max Reach - No Stabilizers
  • 2500 lb
Load at Max Reach - Stabilizers Down
  • 2500 lb
Load at Max Reach - Stabilizers Up
  • 500 lb
Top Travel Speed
  • 25 mph
Dimensions
Height
  • 8.91 ft
Width
  • 8.35 ft
Wheelbase
  • 10.66 ft
Length to Fork Face
  • 21.73 ft
Ground Clearance
  • 20.51 in
Turning Radius Over Tires
  • 13.19 ft
Length to Front of Tire
  • 17.25 ft
Rear Overhang
  • 4.33 ft
Height to Top of Hood
  • 7.15 ft
Hydraulic System
Maximum System Pressure
  • 3626 psi
Maximum Pump Flow
  • 30 gal/min
Auxiliary Hydraulic Supply
  • 16 gal/min
Pump Type
  • Variable Displacement Load Sensing Axial Piston Pump
Service Refill Capacities
Fuel Tank
  • 26 gal
Hydraulic Tank
  • 17 gal

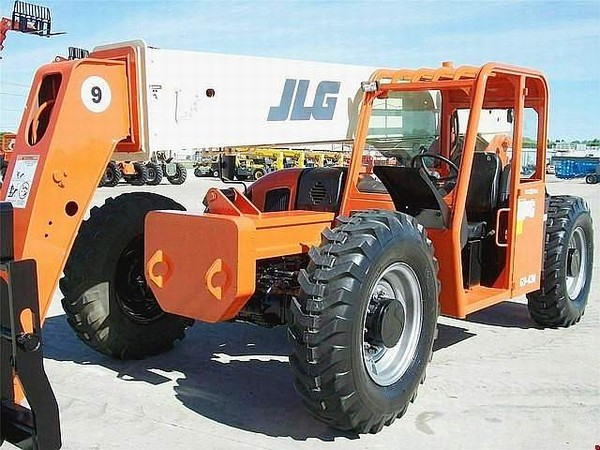

JLG G9-43A
JLG G9-43A — Telehandlers in New Castle, PA
Features
  • Roomier cab for added comfort and to reduce operator fatigue
  • All-wheel steering for easy maneuverability
  • Full range of attachments for versatility in handling jobsite challenges
  • Single joystick controls for smooth operation of boom movements
  • Power shift transmission provides efficient control
Quick Specs
  • 9,000 lb (4,082 kg) carrying capacity
  • Up to 43 ft (13.11 m) maximum lift height
