Carry Deck Cranes in New Castle, PA


Offer a durable and versatile crane in a compact design. Carry deck cranes are designed for both indoor and outdoor jobsites and feature telescoping booms and a load deck for material handling.

AP206 – 6ton
(Click Here for spec sheet)

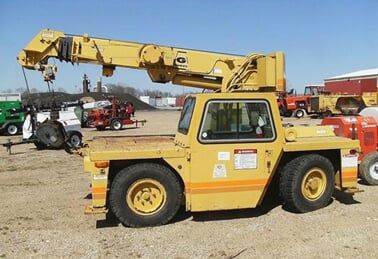

AP206 – 6ton — Carry Deck Cranes in New Castle, PA

Operational

  • Operating Weight: 11073.8 lb ≈ 5023 kg
  • Number of Axels: 2
  • Carrier Fuel Capacity: 29 gal ≈ 109.8 L

  • Operating Voltage: 12 V
  • Tire Size: 8.25X15-12PR

CARRIER ENGINE

  • Make: Continental
  • Model: TMD27
  • Net Power: 66.4 hp ≈ 49.5 kw

  • Power Measured @: 3000 rpm
  • Max Torque: 123.9 lb ft ≈ 168 Nm
  • Torque Measured @: 2000 rpm


Transmission

  • Type: automatic
  • Number of Forward Gears: 3

  • Number of Reverse Gears: 1

  • Max Speed - Forward: 14.9 mph ≈ 24 km/h

Boom

  • Number of Sections: 3
  • Min Height @ Max Raise Angle: 9.5 ft in ≈ 2.9 m
  • Max Height @ MRA - no jib: 20 ft in ≈ 6.1 m

  • Max Elevating Angle: 70 degrees
  • Max Lift Capacity: 12000 lb ≈ 5443.1 kg
  • Min Working Radius: 4 ft in ≈ 1.2 m

  • Max Working Radius: 18 ft in ≈ 5.5 m
  • Swing Speed: 2 rpm

Dimensions

  • Transport Width: 6.2 ft in ≈ 1879 mm
  • Transport Height: 7.2 ft in ≈ 2184 mm

  • Ground Clearance: 1.2 ft in ≈ 376 mm
  • Width w/ Outriggers Extended: 9.2 ft in ≈ 2794 mm

  • Carrier Length: 11.8 ft in ≈ 3606 mm
  • Upper Structure Tail Swing: 2.8 ft in ≈ 863 mm
